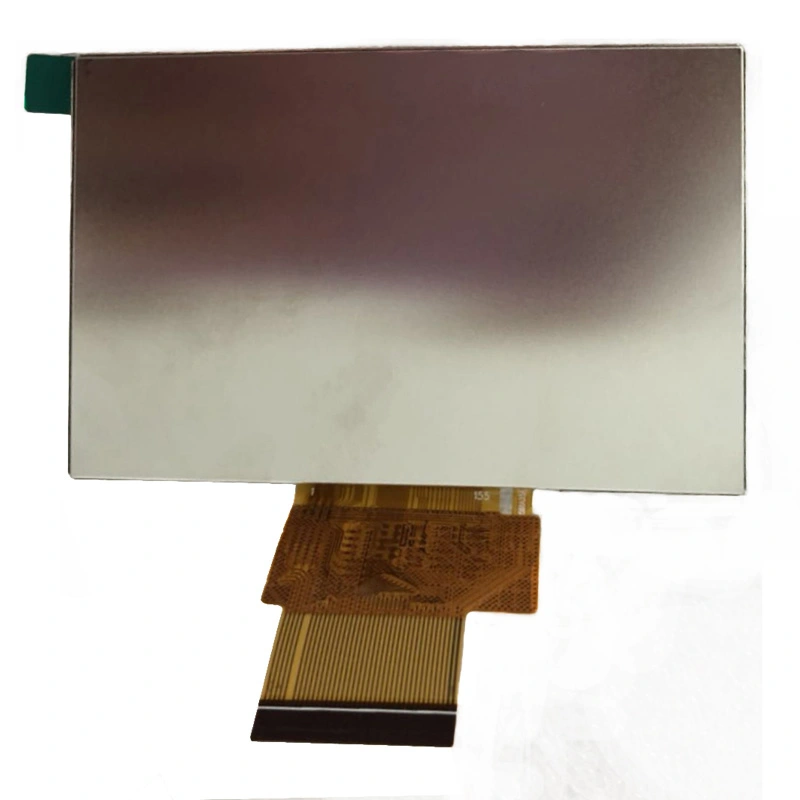

Kingtech 3.5 inch 640*480 TFT display supply very stable. This 3.5 inch supports MIPI interface. In addition, the 3.5 inch 640*480 TFT display module brightness is 300 nits, and this 3.5 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
3.5 inchTFT display
640*480
Stable supply
All/Full/Wide/IPS viewing angle
MIPI interface
300nits brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 3.5 inch IPS 640*480 TFT display |
| Model No. | PV03519T0230S-CO |
| Resolution | 640*480 |
| Outline Dimension (mm) | 76.38*63.66*4.29 |
| Active Area (mm) | 70.08*52.56 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | MIPI VIDEO MODE |
| Backlight | 6*1LED |
| Driving IC | ST7703 |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 3.5 inch 640*480 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
