Kingtech PV07041P0120S is a 7-inch 800x480 dots LCD module using IPS TFT-LCD technology.Its TFT LCD panel is filled wide temperature special LCD crystal. It supports 6/8bit LVDS, low voltage, low power consumption, and high speed transmission. Its work temperature is -30-85C. It is suitable for automotive, outdoor device, transportation, Oven, Outdoor, can work in harsh environment.
Special Ultra-wide temperature LCD crystal

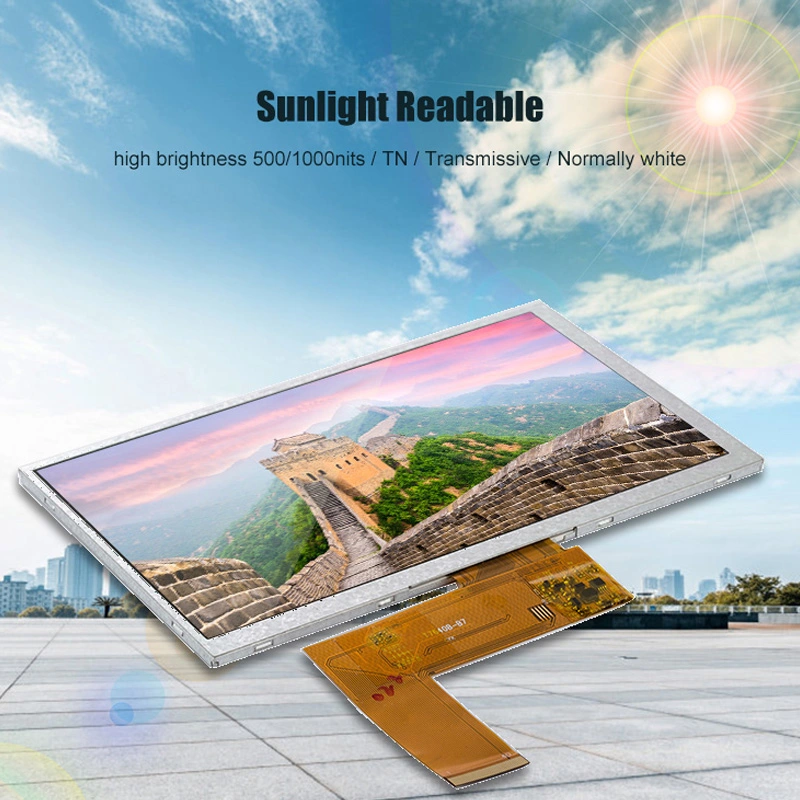

Brightness can be customized/Sunlight readable/High brightness/Outdoor
LVDS interface, fast transmission speed.
Free/All/Full/Wide viewing angle
Fast response time
Wide operating temperature
Reversible scan function
6/8 bit convertible
High Color gamut ( NTSC: 72% )
Get a Quote
Documentation

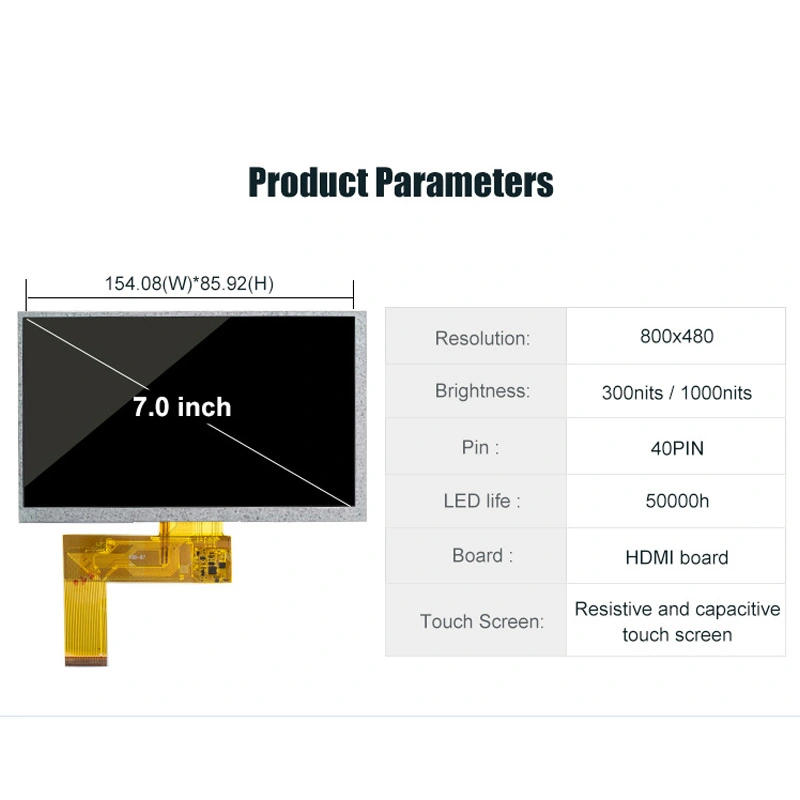

| Item | 7.0 inch IPS 800x480 WVGA LCD module |
| Model No. | PV07041P0120S |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165*104.09*5.3 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | 6/8bit LVDS |
| Backlight | / |
| Pin nums | 20 |
| Driving IC | / |
| PIN No. | 20 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~95C |
| Touch screen | Optional |
| Application | Automative, outdoor device, Motorcycle, Transportation |
The 7-inch 800x480 can work normally in various harsh environments, and is especially suitable for products that have operating temperature requirements such as navigation equipment, ship instruments, and, outdoor, automobile instruments.
