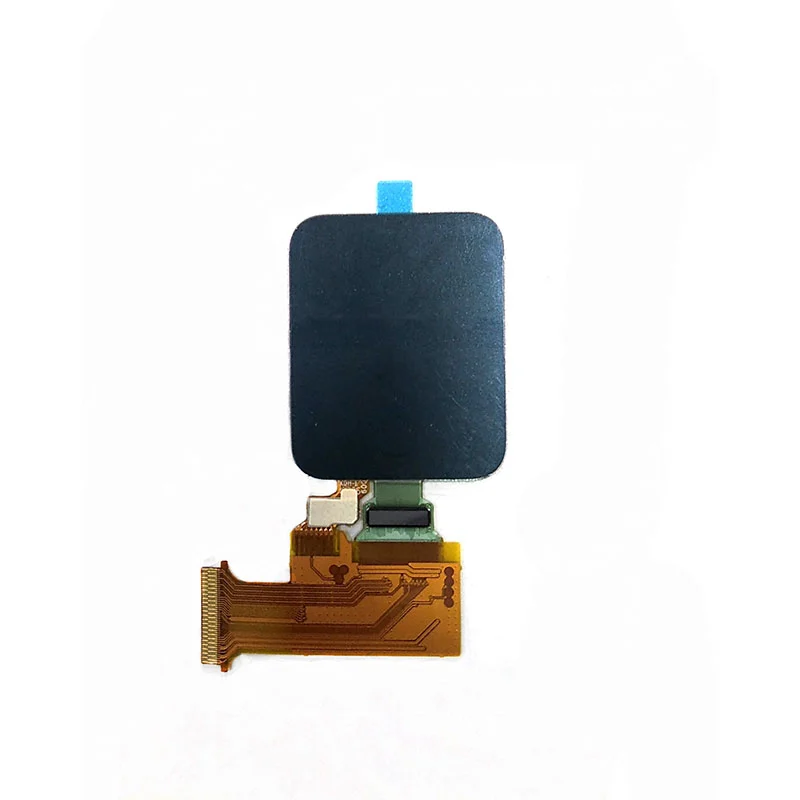

1.78 Inch 368*448 IPS AMOLED Display

Kingtech 1.78 inch 368*448 IPS AMOLED display supply very stable. This 1.78inch supports MIPI/SPI interface. In addition, the 1.78 inch AMOLED module has exsiting HDMI Board. The  brightness is 350nits, and this 1.78 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the display for capacitive touch, can also be customized according to customer requirements.


  • All/Free/Wide viewing angle/IPS

  • 368×448 AMOLED

  • Stable supply

  • Small / tiny display

  • MIPI/SPI interface

  • Smart watch/wearable

  • Capacitive touch screen

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 1.78 Inch 368*448 IPS AMOLED Display

Item1.78 inch  368×448 AMOLED display
Model NoPV017800T45A
Resolution368×448
Outline Dimension30.6 ×37.99 x 0.305
Active Area(mm)28.704×34.944
Viewing AngleALL
Technology typeAMOLED
InterfaceMIPI /3-wire SPI/4-wire SPI/QAD-SPI
Driving ICRM69090
Touch ICTMA525C
Brightness350nits
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenCapacitive touch


Application of 1.78 Inch 368*448 IPS AMOLED Display

  • The 1.78 inch 390*390 IPS AMOLED LCD display can be used for Smart watch and wearable.
