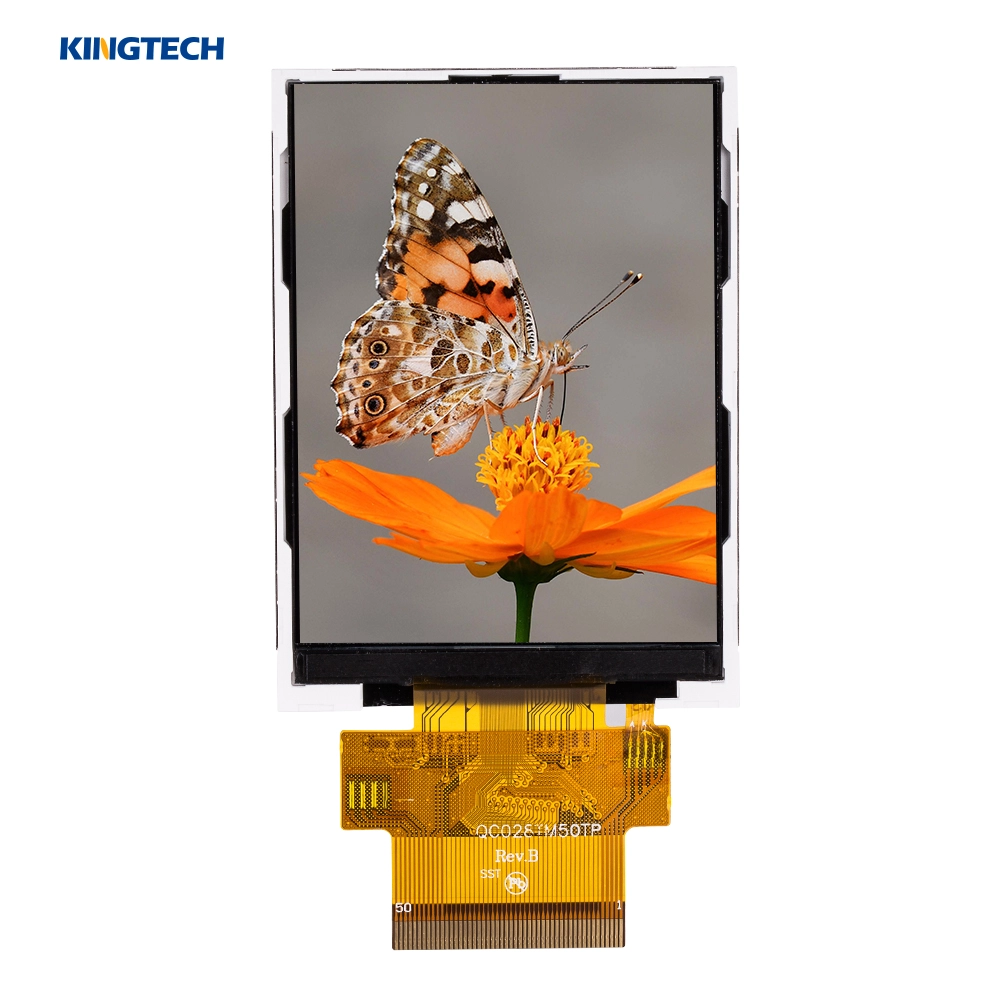

Kingtech 2.8 inch 480*640 TFT display supply very stable. This 2.8 inch supports MIPI interface. In addition, the 2.8 inch 480*640 TFT display module brightness is 280 nits, and this 2.8 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
2.8 inch TFT display
480*640
Stable supply
All
MIPI interface
280nits brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 2.8 inch IPS 480*640 TFT LCD display |
| Model No. | PV02818HZ30K-CO |
| Resolution | 480*640 |
| Outline Dimension (mm) | 52.20*70.90*3.25 |
| Active Area (mm) | 43.2*57.6 |
| Viewing Angle | All |
| Brightness | 280nits |
| Interface | MIPI |
| Backlight | 1*4LED |
| Driving IC | ST7701SN |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 2.8 inch 480*640 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
